GBC - Black Box

A Million data points. One decision.

Why upgrade to GBC's Black Box when you have a mobile device?

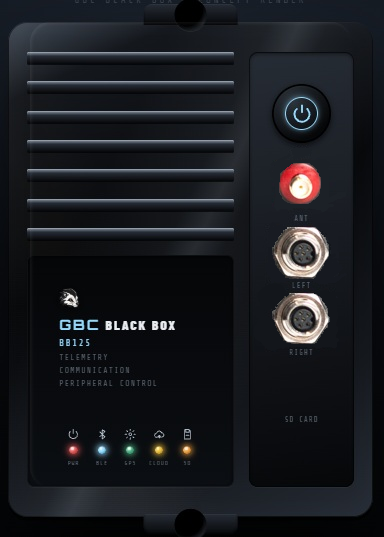

The GBC Black Box is a dual-chip telemetry and peripheral controller. A 6-axis IMU sampling at up to 200Hz captures pitch, roll, braking, and acceleration; multi-constellation GPS (GLONASS, Galileo, BeiDou) adds precise location, heading, and lap timing. Everything logs to SD at 100Hz and streams live over secure WebSockets to your portal and mobile devices. Dual-channel 12V outputs drive GBC's active aero wings, shocks, turbo controllers, or your own custom hardware — one box, built to grow with whatever you connect to it. Add Streaming CANBUS data for even more data analysis.

One box. Every peripheral built and not yet imagined.

Edition

001

Model No

GBC_B001

Subscription

Yearly Subscription

This 1 Year Subscription Included

Mobile

Yes

Driver Analysis

Yes

Buy Now →

Lifetime app + firmware · Two-year guarantee · iOS / Android companion · lifetime · Install time · under 40 minutes · Black Box Plastic Enclosure

· I ·

Position

GPS Activation

u-blox NEO-M9N tracks position 10 times per second across GPS, GLONASS, Galileo, and BeiDou. Lock under thirty seconds. The Black Box reads track entry, corner, and straight automatically.

10 Hz · 1.5 m accuracy · 92-channel

· II ·

Motion

G-Force Response

MPU6050 6-axis IMU resolves cornering load and braking event in milliseconds. Lateral, longitudinal, and yaw rate fed into the same control loop as GPS.

±16 g · ±2000°/s · ±4900µT · 200 Hz fused

· III ·

Logging

Telemetry

Every session stored to micro SD as raw CSV. Wing angle, speed, lateral G, brake bias, lap delta. Pull the card, drop into AIM or MoTeC.

Session-based · CSV export

· IV ·

Companion

App Integration

iOS and Android companion connects over Bluetooth. Live wing angle, live lap timer, profile tuning. Lifetime updates included.

BLE 5.0 · Lifetime

Available Upgrade

Black Box with Streaming CANBUS Data

The base Black Box measures what the car is doing — position, G-force, wing angle — from its own IMU and GPS. CANBUS connectivity taps directly into the vehicle's own ECU over its OBD-II port, no wiring into the harness, and streams a second, independent layer of data alongside it: what the engine and drivetrain are actually doing underneath the driver.

This is measured engine data, not an estimate — the same fuel level the ECU itself reports, RPM read directly off the crank sensor, coolant temperature straight from the sensor.

Add CANBUS Connectivity →

Additional Data Streamed

Engine RPM

Direct from the crank sensor

Vehicle Speed

ECU-sourced, independent of GPS

Throttle Position

Live signal for wing tuning

Engine Load

% of max torque in use

Fuel Level

Measured, replaces the estimate

Coolant Temp

Straight off the sensor

Intake Air Temp

For weather-normalized comparisons

Mass Air Flow

Grams/sec through the intake

Timing Advance

Ignition timing, degrees BTDC

VIN

Auto-read on connect

S/05/Kit·What's included

Inside the case.

01Hardened Custom Design PCB Board
02Accelerometer and Gyroscope
03IMU Sensor · 6 Degrees of Freedom
04IMU Sensor · 3 Degrees each of Linear Acceleration
05NEO-M9N GPS Module
06Large Antenna 2466
07SD Micro card for data backup
08Sealed numbered black box

S/06/Get Started

Ready to order your Black Box?

The Black Box is the foundation of the Gulf Blue Concepts ecosystem when you need pinpoint telemetry — GPS, G-force, data logging, and wireless companion in one hand-assembled unit. Series 001 is limited to 200 numbered enclosures. Start with the Black Box, add Data Aggregation, and scale to any peripheral GBC creates or you create — we are ready when you're ready.

Order Black Box →
