· I ·
Position
GPS Activation

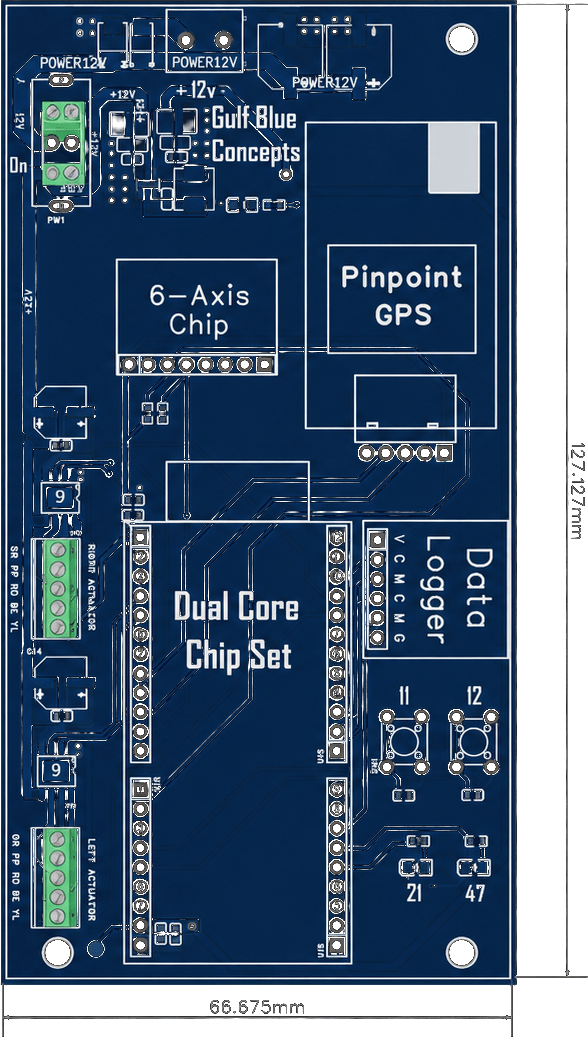

u-blox NEO-6M tracks position 5 times per second. Lock under thirty seconds. The Black Box reads track entry, corner, and straight automatically.
5 Hz · 2.5 m accuracy · 50-channel
S/02/Capabilities·What it does
Four inputs. One decision.
The Black Box reads where you are, what the car is doing, logs every millisecond, and talks to your phone. Together, these four faculties make every wing decision deterministic.
· II ·
Motion
G-Force Response
MPU-6050 6-axis IMU resolves cornering load and braking event in milliseconds. Lateral, longitudinal, and yaw rate fed into the same control loop as GPS.
±16 g · ±2000°/s · 200 Hz fused
· III ·
Logging
Telemetry
Every session stored to micro SD as raw CSV. Wing angle, speed, lateral G, brake bias, lap delta. Pull the card, drop into AIM, MoTeC, or Harry's LapTimer.
Session-based · CSV export
· IV ·
Companion
App Integration
iOS and Android companion connects over Wi-Fi or Bluetooth. Live wing angle, live lap timer, profile tuning. Lifetime updates included.
Wi-Fi · BLE 5.0 · Lifetime
S/04/Specifications·Series 001
Technical data sheet.
- Bus
- CAN1 Mbps · ISO 11898
- Diagnostic
- OBD-IIISO 15765-4
- Sample rate
- 200Hz · GPS + IMU
- MCU
- ESP32-S3Dual-core · 240 MHz
- Memory
- 16 / 8MB Flash / PSRAM
- Wireless
- WiFi · BLE 5.0
- Storage
- Micro SDTelemetry log
- Enclosure
- Billet 6061Numbered · 200 units
- Install
- <40Minutes
- Compliance
- ISO/TS16949 silicon
- FCC ID
- GBC-SR1
- Power
- 12 / 5 / 3.3V regulated
S/05/Kit·What's included
Inside the case.
- 01Black Box v1 · billet enclosure, numbered
- 02Dual hydraulic actuators, 24V
- 03Wiring loom, CAN + OBD-II pigtail
- 04iOS / Android companion app, lifetime
- 05Leather installation dossier, hand-bound
